Software function

Switch Properties

Supports Rate limit, Trunking, Flow control, VLAN and GVRP, Broadcast storm suppression

Redundancy Protocols

Support MW-Ring patent redundancy technique (failure recovery time <20ms)

Support MSTP/RSTP, compatible with STP

Support VRRP, EAPS

Multicast

Support IGMP v1/v2/v3，IGMP Snooping

Support GMRP and Support static multicast filtering

Routing

Support RIPv1/v2, RIPng, OSPFv1/v2,

Support PIM-SM, PIM-DM

Support static routing protocol

Service quality management

Supports SP and WRR queuing.

Support ACL to filter L2-L7 layer data.

Support QoS setting

Management and maintenance

Supports CLI, Telnet and Web management methods, RMON.

Support SNMPv1/v2c

Support FTP TFPT document transmission and software updating

Support power off, power alarm, port alarm

Support trunking

 Support port mirroring, Syslog, LLDP, RTC, SNTPv4
IP supports DHCP server/relay/client

Technical parameters

Protocol Standard

IEEE802.3-10BaseT,

IEEE802.3u-100BaseTX/100Base-FX,

IEEE802.3x-Flow Control,

IEEE802.3z-1000BaseLX,
IEEE802.3ab-1000BaseTX,

IEEE802.1ab,IEEE802.1D-Spanning Tree Protocol,

IEEE802.1w-Rapid Spanning Tree Protocol,
IEEE802.1Q -VLAN Tagging,

IEEE802.1s Multiple Spanning Tree Protocol,

IEEE802.1p -Class of Service,
IEEE802.1X-Port Based Network Access Control,

GVRP, RIPv1/v2, OSPFv1/v2/v3, VRRP, DHCP, CLI,

EAPS, QoS, LACP, LLDP, IGMP, PIM,
SNMP, SNTP, SSH

Switch capability

Priority Queues

8

VLAN Number

4096

IGMP multicast group

256

MAC Table Size

16K

Backplane bandwidth

24Gbps

Switch Delay

<5μs

Routing table

8k

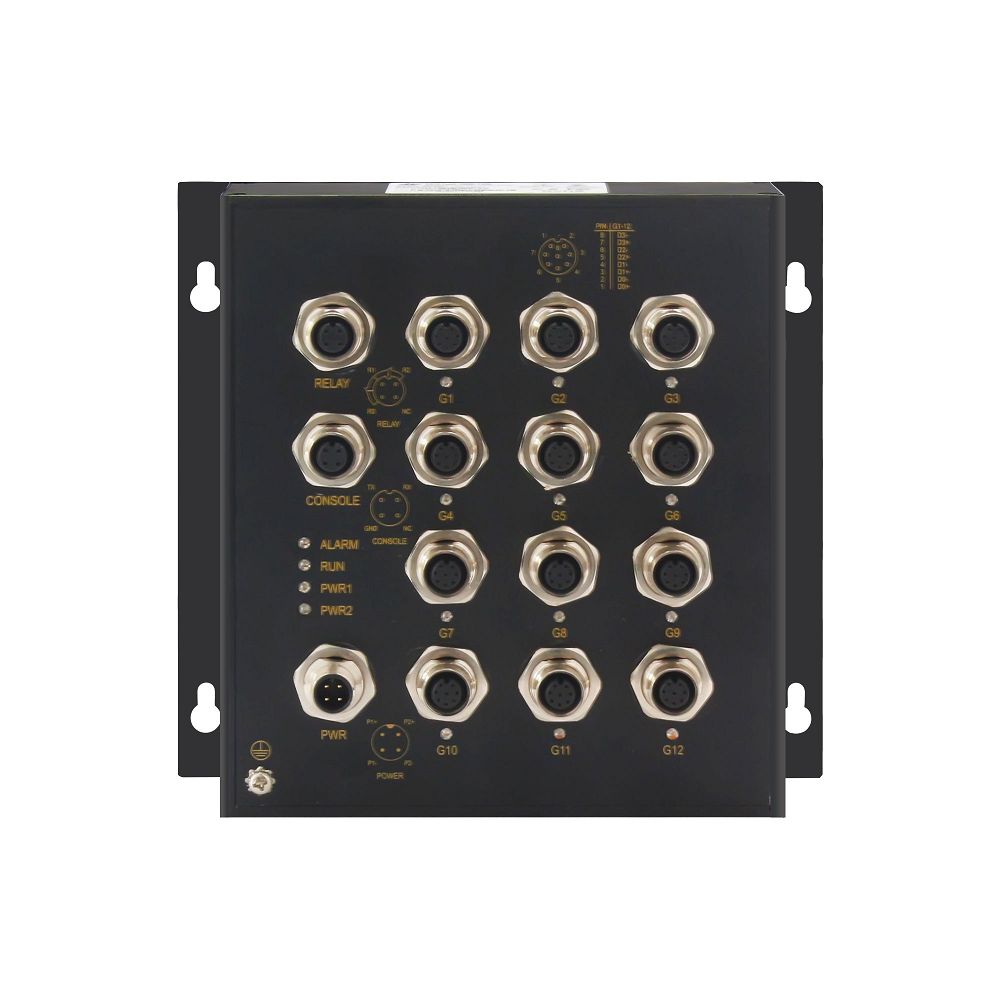

Interface

Gigabit ports

Port numbers: 12

Connector: M12 Gigabit Ethernet port

Baud rate: Self-adaption 10/100/1000MBase-TX

Console port

RS232, RJ45

Terminal block for relay alarm

M12 terminal ,1A@24VDC

Terminal block for power input

M12 terminal

Communication distance

Twisted-pair

100m(CAT5/CAT5e cable)

Power

Input power

DC24V(18-36VDC); DC48V(36-72VDC); DC110（50-160VDC）

Power consumption

<15W@(MAX)

Overload protection

support

Inversed protection

support

Redundancy protection

support

Working Environment

Operating temperature

-40°C~85°C

Storage temperature

-40°C~85°C

Ambient humidity

5%~95% (no condensation)

Physical Characteristics

Shell

IP60 protection, aluminium alloy shell

Installation

Wall-mounting

Dimension

180mm×170mm×50.5mm

Industry standard

EMC

EN61000-4-2(ESD), Level 4

EN61000-4-3(RS), Level 4

EN61000-4-4(EFT), Level 4

EN61000-4-5(Surge), Level 4

EN61000-4-6(CS), Level 4

EN61000-4-8，Level 5

Impact

IEC60068-2-27

Falling

IEC60068-2-32

Shock

IEC60068-2-6

Warranty

Warranty

5 Years

Certification

CE, FCC, RoHS
