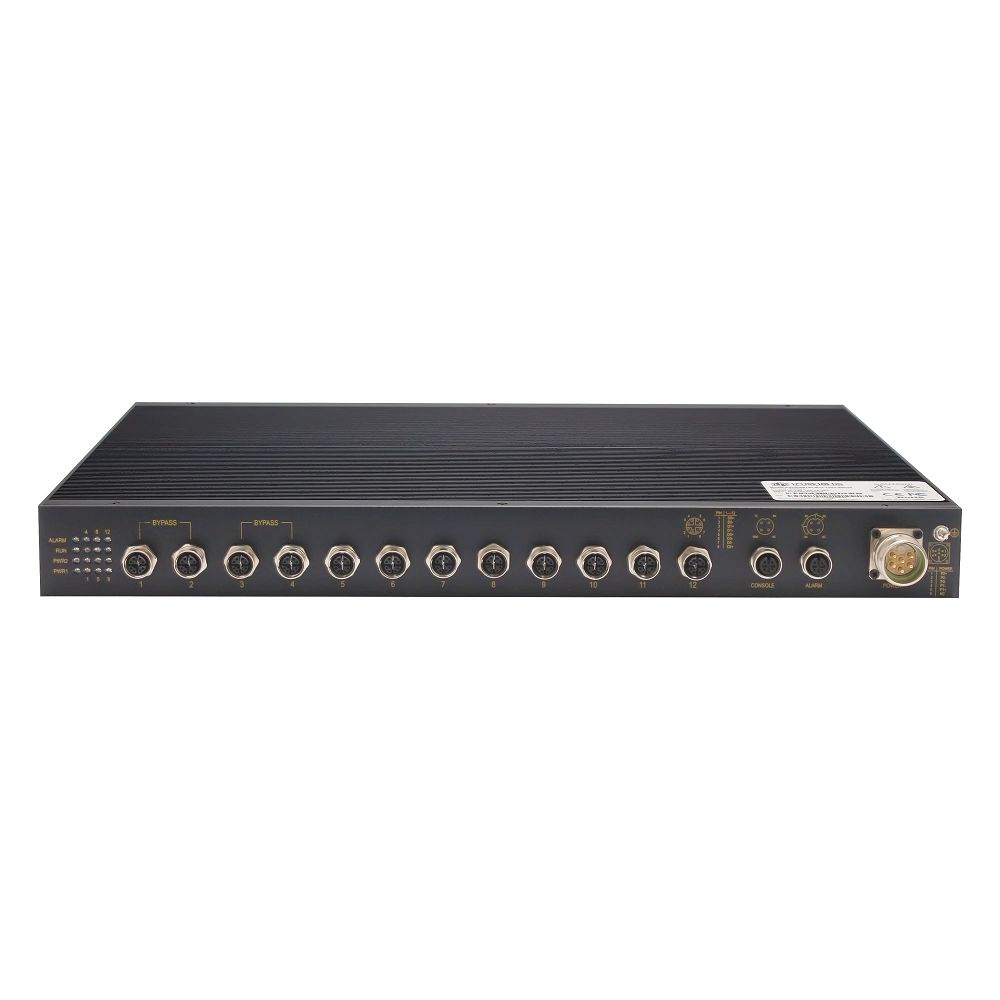

Admas7012G-M12-12GT, 12x1Gbit M12 Layer2 Switch
12 x M12 Port, Full Gigabit Layer 2 Rack Montaj Endüstriyel Ethernet Switch
- Tüm bağlantılar için, M12 vidalı soketli bağlantı ile yüksek güvenlik
- MV-Ring, MSTP, VRRP, EAPS protokolleri ile ring arızası kurtarma
- EN50155 standardı iel tam uyumluluk
- Birçok multicast protokol desteği: örneğin IGMP, PIM-SM, ve PIM-DM
- RIP, OSPF, PIM Layer 3 routing protokol desteği
- Ethernet 1-2 ve 3-4 arasında röle ile bypass fonksiyonu
- -40 ~ 70°C çalışma sıcaklık aralığı
- IP40 koruma sınıfı
- Metal kasa
|
Software function |
|
|
Switch Properties |
Supports Rate limit, Trunking, Flow control, VLAN, IEEE 802.1Q VLAN, Broadcast storm suppression |
|
Redundancy Protocols
|
Support MW-Ring patent redundancy technique (failure recovery time <20ms) Support MSTP/RSTP, EAPS. |
|
Multicast |
IGMP snooping, Static multicast filtering |
|
Management and maintenance |
Supports CLI, Telnet and Web management methods Support SNMPv1/v2c Supports IP/MAC address conflict alarm Support power off, power alarm, port alarm Support trunking Support log viewing Support Link-check and NTP |
|
Technical parameters |
|
|
Protocol Standard |
IEEE802.3(Ethernet) IEEE802.3u (100Base-TX&100Base-FX) IEEE802.3x (Flow Control) IEEE802.3ab (1000Base-T) IEEE802.1 (STP) IEEE802.1w (RSTP) IEEE802.1Q (VLAN) IEEE802.1p (Priority) IEEE802.1x (Visiting Control) |
|
Switch capability |
|
|
Priority Queues |
8 |
|
VLAN Number |
4096 |
|
Multicast group |
512 |
|
MAC Table Size |
16K |
|
Switch Bandwidth |
24Gbps |
|
Switch Delay |
<5μs |
|
Interface |
|
|
Gigabit ports |
Port numbers:12 |
|
Connector: M12 Gigabit Ethernet port |
|
|
Interface rate: 10/100 /1000M adaptive |
|
|
Console port |
RS232, M12 interface |
|
Terminal block for power input |
M12 terminal |
|
LED indicator light |
|
|
Back panel LED lights |
Interface indicator light: LINK/ACT, SPEED |
|
Power indicator light: PWR |
|
|
Communication distance |
|
|
Twisted-pair |
100m(CAT5/CAT5e cable) |
|
Power |
|
|
Input power |
DC24V, DC48V, DC110V |
|
Power consumption |
<15W@(MAX) |
|
Overload protection |
support |
|
Inversed protection |
support |
|
Redundancy protection |
support |
|
Working Environment |
|
|
Operating temperature |
-40°C~85°C |
|
Storage temperature |
-40°C~85°C |
|
Ambient humidity |
5%~95% (no condensation) |
|
Physical Characteristics |
|
|
Shell |
IP40 protection, aluminium alloy shell |
|
Installation |
Standard 19-inch rack mounting, |
|
Dimension |
482.6mm×44mm×210mm |
|
Industry standard |
|
|
EMC |
EN61000-4-2(ESD), Level 4 EN61000-4-3(RS), Level 4 EN61000-4-4(EFT), Level 4 EN61000-4-5(Surge), Level 4 EN61000-4-6(CS), Level 4 EN61000-4-8, Level 5 |
|
Impact |
IEC60068-2-27 |
|
Falling |
IEC60068-2-32 |
|
Shock |
IEC60068-2-6 |
|
Warranty |
|
|
Warranty |
5 Years |
|
Certification |
CE, FCC, RoHS |
| Kodu | Model | Açıklama |
|---|---|---|
| Admas7012G-M12-12GT-DC24 | Admas7012G-M12-12GT-DC24 | 12x1Gbit M12 Layer2 Switch, Aux=18-36Vdc |
| Admas7012G-M12-12GT-DC48 | Admas7012G-M12-12GT-DC48 | 12x1Gbit M12 Layer2 Switch, Aux=36-72Vdc |
| Admas7012G-M12-12GT-DC110 | Admas7012G-M12-12GT-DC110 | 12x1Gbit M12 Layer2 Switch, Aux=50-160Vdc |
