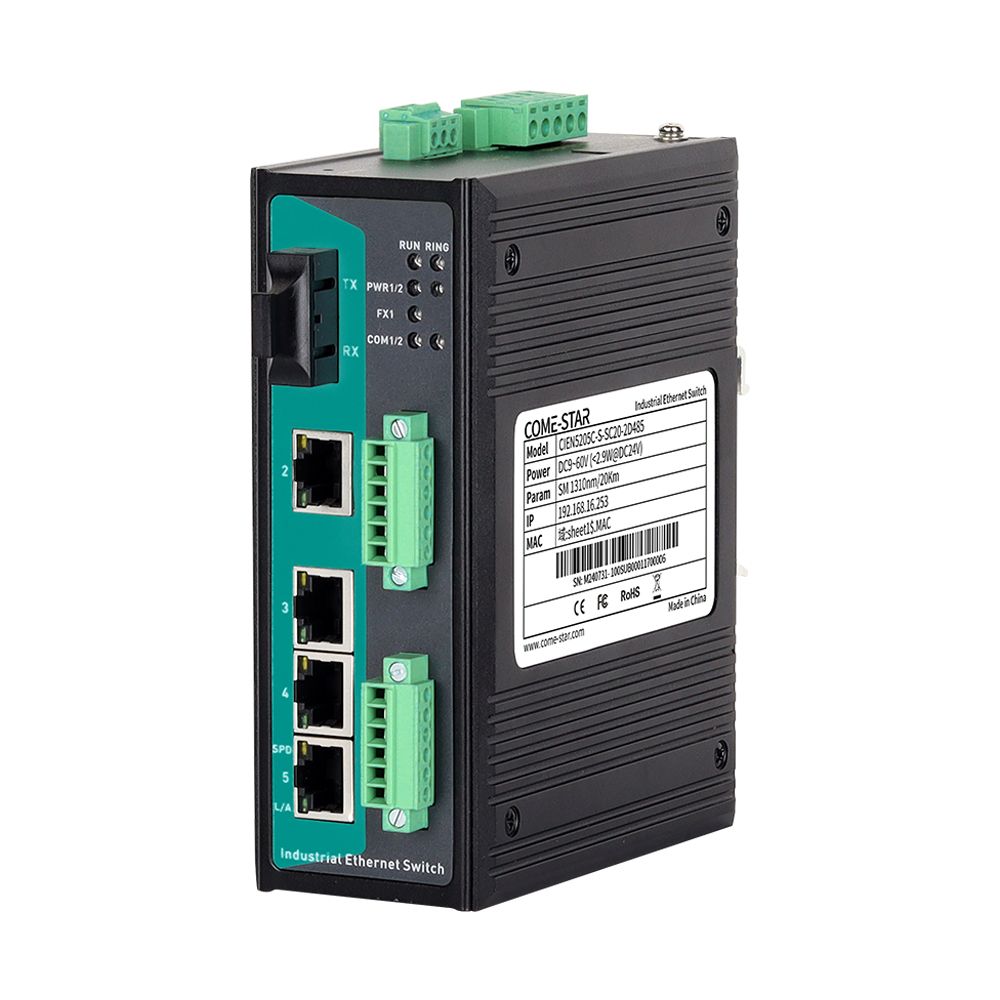

Software

Switching

Support port configuration, port rate configuration, storm detection, and port statistics

Support 802.1Q VLAN and port-based VLAN

Support MAC address aging

CAN/Serial

Support UDP, TCP Client, TCP Server, UDP multicast and other network working modes

Support statistics on the number of bytes sent and received by serial port and network

Support CAN working modes such as normal mode, monitoring mode, loopback mode, etc.

Support CAN ID filtering, CAN frame statistics

Redundancy

Support MW-Ring proprietary ring network technology

Support RSTP and compatible with STP

Multicast

Support static multicast MAC address binding

Management and Maintenance

Support static IP

Support QoS, 802.1P/DSCP/port priority mapping, absolute and relative priority control

Support port mirroring, ping, alarm

Supports user management with different permissions, online restart, factory reset, system upgrade, and configuration file upload/download

Support MixView, MaxView management

Switch Capability

Processing Type

Store-and-Forward

Backplane Bandwidth

1.2Gbps

Buffer Size

768kbit

MAC Table Size

2K

Interface

100M Fiber Port

1/2*100Base-FX fiber ports, support single-mode/multi-mode, SC/FC/ST connector, wavelength and transmission distance optional

100M Copper Port

4/3*10/100Base-T(X) auto-sensing copper ports, support full/half duplex, auto MDI/MDI-X connection

Serial Port

Interface type: 2*RS232/RS485

Interface signals: A, B, GND, TX, RX

Baud rate: 600bps-115200bps

Data bits: 7bit, 8bit

Stop bit: 1bit, 2bit

Check digit: none, odd parity, even parity, Mark, Space

Connection method: 6-position 3.81mm pitch locking terminal blocks

Terminal resistor: built-in 120Ω terminal resistor, which can be set by jumper cap

Isolated voltage: 1.5kV

CAN Port

Interface type: 2* CAN port optional

Interface signals: CANH, CANL, GND

Baud rate: 5kbps-1000kbps

Connection method: 6-position 3.81mm pitch locking terminal blocks

Terminal resistor: built-in 120Ω terminal resistor, which can be set by dip switch

Relay

1* relay alarm output, 3-position 3.81mm pitch locking terminal block

Button

Restart and factory reset button

Statue LED

Power indicator, operation indicator, interface indicator, copper port speed indicator, serial port/CAN indicator

Power Supply

Input Voltage

DC9-60V, dual power inputs, non-polar

Power Consumption

＜2.9W@DC24V (F), ＜3.7W@DC24V (2F),

Connection

5-position 5.08mm pitch locking terminal blocks

Physical Characteristics

Dimensions

140×54×110 mm (exclude din rail mounting clips)

Installations

35mm standard DIN rail mount

Weight

0.64kg

Working Environment

Operating Temp

-40°C ~ +85°C

Storage Temp

-40°C ~ +85°C

Relative Humidity

5%~95% (non-condensing)

Industry Standard

EMC

IEC 61000-4-2 (ESD): Level 4

IEC 61000-4-5 (Surge): Level 4 ※The network port supports 6kV lightning protection

IEC 61000-4-4 (EFT): Level 4

Certification

CE, FCC, RoHS
