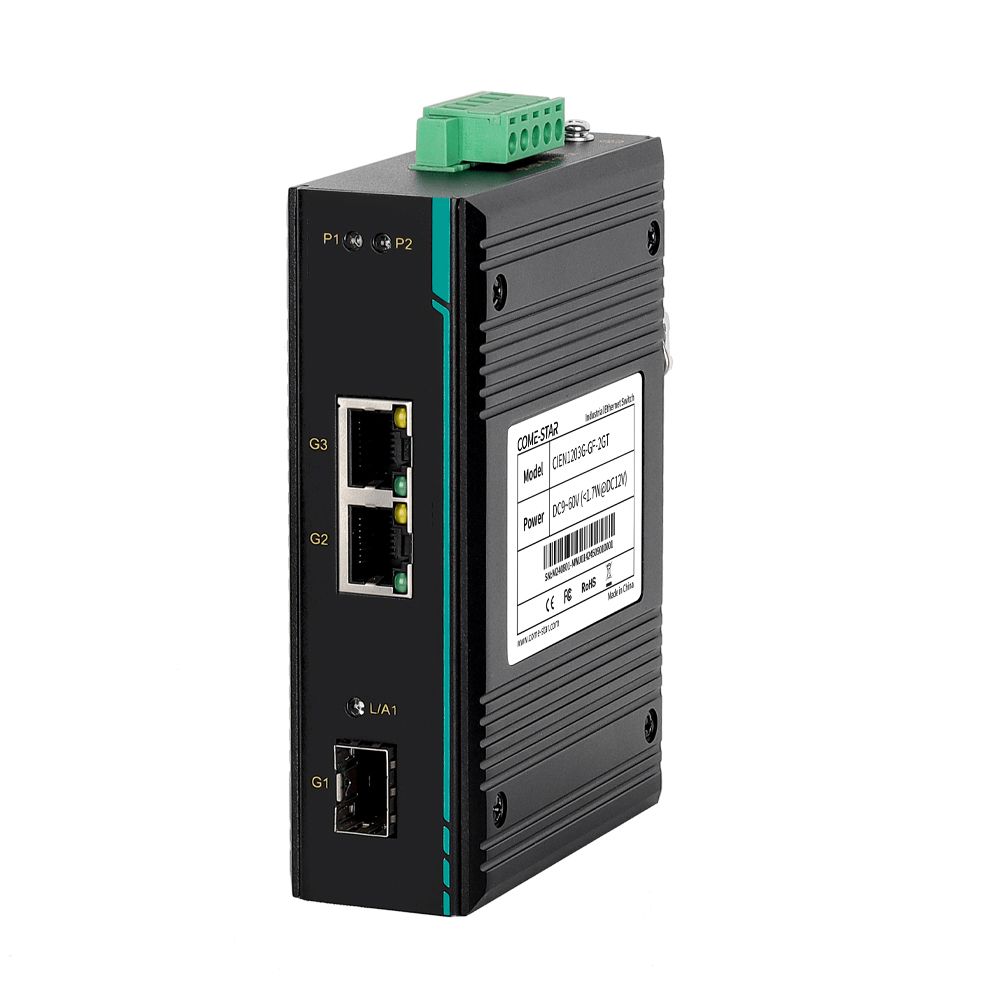

CIEN1203G-1xGbit FX-1/2xGbit RJ45, 1xDB9, Fiber Dönüştürücü
CIEN1203G-1xGbit FX-1 veya 2xGbit RJ45, 1xDB9 Seri Port Fiber Dönüştürücü
- Çalışma durum LED leri ile kullanıcı dostu tasarım
- Ethernet RJ45 ve aynı anda DB9 Seri Portu Fibere dönüştürme özelliği
- Metal kasa
- AC ve DC besleme seçenekleri
|
Technical specifications |
|
|
Ethernet Standard |
IEEE802.3-10BaseT IEEE802.3u-100BaseTX/100Base-FX IEEE802.3x-Flow Control |
|
Switch Properties |
|
|
MAC Table |
1K |
|
Switch Bandwidth |
6Gbps |
|
Switching Delay |
<5μs |
|
Interface |
|
|
Gigabit ports |
Port numbers:3 |
|
Connector: SFP (LC port and sing/multi-mode available) or adaptive 10/100/1000M-TX module |
|
|
Baud rate: 1000Base-LX(fiber port), adaptive 10/100/1000M-Tx port |
|
|
Terminal block for power input |
5.08mm terminal block |
|
Communication distance |
|
|
Twisted-pair |
100m(CAT5/CAT5e cable) |
|
Multi-mode fiber |
Gigabit multi-mode:1310nm 500m |
|
Single mode fiber |
Gigabit single mode:1310nm 20km |
|
LED indicator lights |
|
|
Front panel LED |
Port light: LINK/ACT; SPEED |
|
Power LED: PWR |
|
|
Power requirements |
|
|
Power input |
Support DC12~48V |
|
Full-load Consumption |
<1.7w |
|
Overload protection |
Support |
|
Reverse protection |
Support |
|
Working Environment |
|
|
Operating Temperature |
-40°C~85°C |
|
Storage temperature |
-40°C~85°C |
|
Ambient Humidity |
5%~95%(non-condensing) |
|
Physical Characteristics |
|
|
Shell |
Aluminum alloy shell, IP40 |
|
Installation |
35mm din rail-mounted installation |
|
Dimension |
118mm * 35mm * 86mm (MIGE1203G,MIGE1203G-DB9) |
|
Industry standard |
|
|
EMC |
EN61000-4-2(ESD), Level 4 EN61000-4-3(RS), Level 4 EN61000-4-4(EFT), Level 4 EN61000-4-5(Surge), Level 4 EN61000-4-6(CS), Level 4 EN61000-4-8, Level 5 |
|
Impact |
IEC60068-2-27 |
|
Falling |
IEC60068-2-32 |
|
Shock |
IEC60068-2-6 |
|
Warranty |
|
|
Warranty period |
5 Years |
|
Certification |
|
|
Certification |
CE/FCC/RoHS |
| Kodu | Model | Açıklama |
|---|---|---|
| CIEN1203G-GF-2GT | CIEN1203G-GF-2GT | 1xGbit FX-2xGbit RJ45 Aux=12-48Vdc |
| CIEN1203G-GF-2GT-AD220 | CIEN1203G-GF-2GT-AD220 | 1xGbit FX-2xGbit RJ45 Aux=AC85 -264V/ DC110~370V |
